sing-box tproxy
发布于 2023-10-12 | 浏览量

sing-box 透明代理配置。本文中的配置是示例，适用于 sing-box 1.12 及更高版本，不适用于 ipv6 网络。如果要使用请根据实际情况自己修改。

环境 #

Debian系统：专门用来做透明代理的网关服务器，或者叫旁路网关，网络需要设置为静态:

## /etc/network/interfaces
iface ens16 inet static
    address 10.0.0.20/24
    gateway 10.0.0.1

sing-box：运行在网关服务器上做DNS服务、规则分流和代理。

配置 #

注意替换里面的路径。

路径/path/to/sing-box/nftables.sh

#!/bin/bash

if [ $# != 1 ]
then
   echo "Use $(basename "$0") <set|clear>"
   exit 1;
fi

INTERFACE=$(ip route show default | awk '/default/ {print $5}')
TPROXY_PORT=7895  ## 和 sing-box 中定义的一致
ROUTING_MARK=666  ## 和 sing-box 中定义的一致
PROXY_FWMARK=1
PROXY_ROUTE_TABLE=100

# https://en.wikipedia.org/wiki/Reserved_IP_addresses
ReservedIP4='{ 127.0.0.0/8, 10.0.0.0/8, 192.168.0.0/16, 100.64.0.0/10, 169.254.0.0/16, 172.16.0.0/12, 224.0.0.0/4, 240.0.0.0/4, 255.255.255.255/32 }'
CustomBypassIP='{ 192.168.0.0/16 }' ## 添加其他不想透明代理的地址

nftrule=$(cat <<EOF

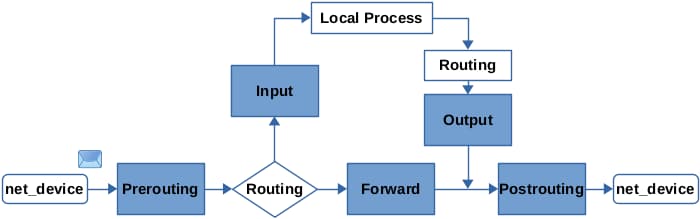

table inet sing-box {
    chain prerouting_tproxy {
        type filter hook prerouting priority mangle; policy accept;
        meta l4proto { tcp, udp } th dport 53 tproxy to :$TPROXY_PORT meta mark set $PROXY_FWMARK accept comment "DNS劫持"
        ip daddr $CustomBypassIP accept comment "绕过某些地址"
        meta l4proto { tcp, udp } th dport { 137, 138, 139, 445} accept comment "绕过smb流量"
        meta l4proto { tcp, udp } th dport 3389 accept comment "绕过rdp流量"
        udp dport 123 accept comment "绕过ntp流量"
        fib daddr type local meta l4proto { tcp, udp } th dport $TPROXY_PORT reject with icmpx type host-unreachable comment "直接访问tproxy端口拒绝, 防止回环"
        fib daddr type local accept comment "本机绕过"
        ip daddr $ReservedIP4 accept comment "保留地址绕过"
        meta l4proto tcp socket transparent 1 meta mark set $PROXY_FWMARK accept comment "绕过已经建立的透明代理"
        meta l4proto { tcp, udp } tproxy to :$TPROXY_PORT meta mark set $PROXY_FWMARK comment "其他流量透明代理"
    }

    chain output_tproxy {
        type route hook output priority mangle; policy accept;
        oifname != $INTERFACE accept comment "绕过本机内部通信的流量(接口lo)"
        meta mark $ROUTING_MARK accept comment "绕过本机sing-box发出的流量"
        meta l4proto { tcp, udp } th dport 53 meta mark set $PROXY_FWMARK accept comment "DNS重路由到prerouting"
        meta l4proto { tcp, udp } th dport { 137, 138, 139, 445} accept comment "绕过smb流量"
        meta l4proto { tcp, udp } th dport 3389 accept comment "绕过rdp流量"
        udp dport 123 accept comment "绕过ntp流量"
        ip daddr $CustomBypassIP accept comment "绕过某些地址"
        fib daddr type local accept comment "本机绕过"
        ip daddr $ReservedIP4 accept comment "保留地址绕过"
        meta l4proto { tcp, udp } meta mark set $PROXY_FWMARK comment "其他流量重路由到prerouting"
    }
}
EOF
)

function ClearRules()
{
    IPRULE=$(ip rule show | grep $PROXY_ROUTE_TABLE)
    if [ -n "$IPRULE" ]
    then
        ip -f inet rule del fwmark $PROXY_FWMARK lookup $PROXY_ROUTE_TABLE
        ip -f inet route flush table $PROXY_ROUTE_TABLE
    fi

    nft flush ruleset
    echo "clear nftables"
}


function SetRules()
{
    ip -f inet rule add fwmark $PROXY_FWMARK lookup $PROXY_ROUTE_TABLE
    ip -f inet route add local default dev lo table $PROXY_ROUTE_TABLE
    sysctl -w net.ipv4.ip_forward=1 > /dev/null

    echo "$nftrule" | nft -f -
    echo "set nftables"
}


if [ $1 = 'set' ]
then
    ClearRules
    SetRules
elif [ $1 = 'clear' ]
then
    ClearRules
fi

路径/etc/systemd/system/sing-box.service

[Unit]
Description=sing-box tproxy daemon.
After=network.target nss-lookup.target network-online.target

[Service]
Type=simple
LimitNOFILE=1000000
ExecStartPre=/bin/sleep 2
ExecStart=/path/to/sing-box/sing-box run -c /path/to/sing-box/sing-box-tproxy.json -D /path/to/sing-box/data
ExecStartPost=bash /path/to/sing-box/nftables.sh set
ExecStop=bash /path/to/sing-box/nftables.sh clear

[Install]
WantedBy=multi-user.target

客户端配置文件，路径/path/to/sing-box/sing-box-tproxy.json

{
    "log": {
        "disabled": false,
        "level": "warn",
        "output": "box.log",
        "timestamp": true
    },
    "dns": {
        "servers": [
            {
                "tag": "tencentDoH",
                "type": "https",
                "server": "1.12.12.12"
            },
            {
                "tag": "cloudflareDoH",
                "type": "https",
                "server": "1.1.1.1",
                "detour": "PROXY"
            },
            {
                "tag": "localDNS",
                "type": "local"
            },
            {
                "tag": "fakeipDNS",
                "type": "fakeip",
                "inet4_range": "198.18.0.0/15"
            }
        ],
        "rules": [
            {
                "invert": true,
                "protocol": "dns",
                "action": "reject",
                "method": "drop"
            },
            {
                "query_type": "AAAA",
                "action": "predefined",
                "rcode": "NOERROR"
            },
            {
                "query_type": "A",
                "rule_set": "geosite-private",
                "server": "localDNS"
            },
            {
                "rule_set": "geosite-private",
                "action": "predefined",
                "rcode": "NOERROR"
            },
            {
                "clash_mode": "direct",
                "server": "tencentDoH"
            },
            {
                "rule_set": [
                    "geosite-geolocation-cn",
                    "geosite-win-update",
                    "geosite-apple"
                ],
                "server": "tencentDoH"
            },
            {
                "query_type": "A",
                "rule_set": [
                    "geosite-google",
                    "geosite-github",
                    "geosite-telegram",
                    "geosite-openai",
                    "geosite-claude",
                    "geosite-gemini",
                    "geosite-gfw"
                ],
                "server": "fakeipDNS",
                "rewrite_ttl": 10
            },
            {
                "query_type": [
                    "A",
                    "CNAME",
                    "SVCB",
                    "HTTPS",
                    "SRV",
                    "PTR"
                ],
                "server": "cloudflareDoH"
            }
        ],
        "final": "tencentDoH",
        "strategy": "ipv4_only",
        "disable_cache": false,
        "disable_expire": false,
        "independent_cache": true,
        "reverse_mapping": false
    },
    "inbounds": [
        {
            "tag": "TPROXY-IN",
            "type": "tproxy",
            "listen": "0.0.0.0",
            "listen_port": 7895
        },
        {
            "tag": "MIXED-MAIN-IN",
            "type": "mixed",
            "listen": "0.0.0.0",
            "listen_port": 7900
        }
    ],
    "outbounds": [
        {
            "tag": "PROXY",
            "type": "selector",
            "outbounds": [
                "🇭🇰 IEPL-AUTO",
                "🇸🇬 ANYTLS"
            ],
            "default": "🇭🇰 IEPL-AUTO",
            "interrupt_exist_connections": true
        },
        {
            "tag": "FINAL",
            "type": "selector",
            "outbounds": [
                "PROXY",
                "DIRECT"
            ],
            "default": "PROXY",
            "interrupt_exist_connections": true
        },
        {
            "tag": "APPLE",
            "type": "selector",
            "outbounds": [
                "PROXY",
                "DIRECT",
                "🇭🇰 IEPL-AUTO",
                "🇸🇬 ANYTLS"
            ],
            "default": "DIRECT",
            "interrupt_exist_connections": true
        },
        {
            "tag": "AI",
            "type": "selector",
            "outbounds": [
                "PROXY",
                "DIRECT",
                "🇭🇰 IEPL-AUTO",
                "🇸🇬 ANYTLS"
            ],
            "default": "🇸🇬 ANYTLS",
            "interrupt_exist_connections": true
        },
        {
            "tag": "TELEGRAM",
            "type": "selector",
            "outbounds": [
                "🇭🇰 IEPL-AUTO",
                "🇸🇬 ANYTLS"
            ],
            "default": "🇭🇰 IEPL-AUTO",
            "interrupt_exist_connections": true
        },
        {
            "tag": "🇭🇰 IEPL-A",
            "type": "shadowsocks",
            "server": "ss-a.exp.com",
            "server_port": 6350,
            "method": "2022-blake3-chacha20-poly1305",
            "password": "xxxxxxxxxx",
            "multiplex": {
                "enabled": true,
                "protocol": "h2mux",
                "max_streams": 6,
                "padding": true
            }
        },
        {
            "tag": "🇭🇰 IEPL-B",
            "type": "shadowsocks",
            "server": "ss-b.exp.com",
            "server_port": 6351,
            "method": "2022-blake3-chacha20-poly1305",
            "password": "xxxxxxxxxx",
            "multiplex": {
                "enabled": true,
                "protocol": "h2mux",
                "max_streams": 6,
                "padding": true
            }
        },
        {
            "tag": "🇭🇰 IEPL-AUTO",
            "type": "urltest",
            "outbounds": [
                "🇭🇰 IEPL-B",
                "🇭🇰 IEPL-A"
            ],
            "interval": "1m",
            "tolerance": 200,
            "idle_timeout": "10m",
            "url": "https://cp.cloudflare.com/generate_204",
            "interrupt_exist_connections": true
        },
        {
            "tag": "🇸🇬 ANYTLS",
            "type": "anytls",
            "server": "x.x.x.x",
            "server_port": 443,
            "password": "xxxxxxxxxx",
            "min_idle_session": 2,
            "tls": {
                "enabled": true,
                "server_name": "anytls.exp.com",
                "utls": {
                    "enabled": true,
                    "fingerprint": "chrome"
                }
            }
        },
        {
            "tag": "DIRECT",
            "type": "direct"
        }
    ],
    "route": {
        "rules": [
            {
                "action": "sniff"
            },
            {
                "protocol": "dns",
                "action": "hijack-dns"
            },
            {
                "port": 53,
                "action": "hijack-dns"
            },
            {
                "rule_set": "geosite-private",
                "outbound": "DIRECT"
            },
            {
                "clash_mode": "direct",
                "outbound": "DIRECT"
            },
            {
                "clash_mode": "global",
                "outbound": "PROXY"
            },
            {
                "rule_set": "geosite-apple",
                "outbound": "APPLE"
            },
            {
                "rule_set": [
                    "geosite-openai",
                    "geosite-claude",
                    "geosite-gemini"
                ],
                "outbound": "AI"
            },
            {
                "rule_set": [
                    "geosite-telegram",
                    "geoip-telegram"
                ],
                "outbound": "TELEGRAM"
            },
            {
                "rule_set": [
                    "geosite-google",
                    "geosite-github",
                    "geosite-gfw"
                ],
                "outbound": "PROXY"
            },
            {
                "rule_set": [
                    "geoip-private",
                    "geoip-cn",
                    "geosite-geolocation-cn",
                    "geosite-win-update"
                ],
                "outbound": "DIRECT"
            }
        ],
        "rule_set": [
            {
                "tag": "geosite-private",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/private.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-google",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/google.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-geolocation-cn",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/geolocation-cn.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-win-update",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/win-update.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-apple",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/apple.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-github",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/github.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geoip-telegram",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geoip/telegram.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-telegram",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/telegram.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-openai",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/openai.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-gfw",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/gfw.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geoip-private",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geoip/private.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geoip-cn",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geoip/cn.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-claude",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/claude.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            },
            {
                "tag": "geosite-gemini",
                "type": "remote",
                "format": "source",
                "url": "https://raw.githubusercontent.com/fdxx/meta-rules-dat/refs/heads/sing/geo/geosite/gemini.json",
                "download_detour": "🇸🇬 ANYTLS",
                "update_interval": "999d"
            }
        ],
        "final": "FINAL",
        "default_domain_resolver": "tencentDoH",
        "auto_detect_interface": true,
        "default_mark": 666
    },
    "experimental": {
        "clash_api": {
            "external_controller": "0.0.0.0:9191",
            "external_ui": "yacd",
            "external_ui_download_url": "https://github.com/MetaCubeX/Yacd-meta/archive/gh-pages.zip",
            "external_ui_download_detour": "🇸🇬 ANYTLS",
            "secret": "xxx",
            "default_mode": "rule"
        }
    }
}

服务端配置示例

{
    "log": {
        "disabled": false,
        "level": "warn",
        "output": "box.log",
        "timestamp": true
    },
    "dns": {
        "servers": [
            {
                "tag": "OUTDNS",
                "type": "https",
                "server": "1.1.1.1"
            }
        ]
    },
    "inbounds": [
        {
            "type": "shadowsocks",
            "tag": "ss-a",
            "listen": "0.0.0.0",
            "listen_port": 6350,
            "method": "2022-blake3-chacha20-poly1305",
            "password": "xxxxxxxxxx",
            "multiplex": {
                "enabled": true,
                "padding": true
            }
        },
        {
            "type": "shadowsocks",
            "tag": "ss-b",
            "listen": "0.0.0.0",
            "listen_port": 6351,
            "method": "2022-blake3-chacha20-poly1305",
            "password": "xxxxxxxxxx",
            "multiplex": {
                "enabled": true,
                "padding": true
            }
        },
        {
            "type": "anytls",
            "tag": "anytls-in",
            "listen": "0.0.0.0",
            "listen_port": 443,
            "users": [
                {
                    "name": "xxx",
                    "password": "xxxxxxxxxx"
                }
            ],
            "tls": {
                "enabled": true,
                "server_name": "anytls.exp.com",
                "acme": {
                    "domain": "anytls.exp.com",
                    "email": "exp@gmail.com",
                    "provider": "letsencrypt",
                    "dns01_challenge": {
                        "provider": "cloudflare",
                        "api_token": "xxxxxxx"
                    }
                }
            }
        }
    ],
    "outbounds": [
        {
            "tag": "DIRECT",
            "type": "direct",
            "domain_resolver": {
                "server": "OUTDNS",
                "strategy": "ipv4_only"
            }
        }
    ]
}

路由和规则匹配 #

在透明代理环境中，程序在发起连接前首先需要知道目标IP地址，也就是DNS查询，拿到IP后再建立连接。这在sing-box路由中体现为2次入站：

  • 第一次：nftables判断目标端口是否为53，透明代理入站sing-box，route.rules中匹配DNS规则分流到DNS模块处理DNS查询。
  • 第二次：程序拿着IP透明代理入站sing-box，路由和规则匹配，走代理或直连出站。

telegram等程序已经有目标IP的情况下，则没有DNS查询步骤，入站就是IP。

如果程序使用socks5或http代理入站，DNS查询通常是由代理服务器负责，此时入站是域名，DNS查询发生在出站的时候（本地直接出站或走代理到服务端出站）。

如果使用fakeIP呢？

如果DNS全返回fakeIP

  • 对于需要走代理的连接，本地出站时是传域名到服务器重新进行DNS查询建立连接。
  • 对于需要直连的连接，本地出站时也是域名，此时sing-box会使用outbounds[].domain_resolver.server发起DNS查询，返回正常的IP地址再建立连接。

从以上不难看出，fakeIP对于明确需要走代理的连接很有用，相当于在本地省略了一次DNS查询（sing-box立即返回fakeIP），由服务端进行DNS查询建立连接。

但由于DNS查询都返回fakeIP，匹配IP类规则失去意义，两者在路由时都只能使用sniff匹配域名规则。

如果DNS全返回正常IP

  • 对于需要走代理的连接，出站时传IP到服务端建立连接。
  • 对于需要直连的连接，就直接IP出站建立连接。

对于此种方案，优点是可以使用sniff同时匹配域名规则和IP规则。但缺点是对于需要走代理的连接，传到服务端的可能是被污染的IP，或者干脆在本地就对污染的IP匹配到错误的规则导致分流不符合预期。如果全使用国外DNS服务器走代理查询，速度上也很慢。

sniff_override_destination

如果在服务端入站启用sniff_override_destination，无论入站是IP还是域名，通通覆盖IP为域名重新进行DNS查询是否可行？这样不就解决服务端拿到IP是污染的问题了吗？但这样有个弊端。

有些连接目标IP地址是确定的，或者说是硬编码的，这种不需要DNS查询直接IP入站。这种情况下，如果强行用sniff到的域名覆盖目标地址重新进行DNS查询建立连接，可能会导致连接出现各种问题，比如sniff到的域名解析出的IP地址和程序的预期不符，或者干脆就是无效的域名。

折中方案

那么有没有一种方案既可以保留fakeIP优点，又可以最大限度的保证DNS查询的速度和准确，并且尽可能同时匹配域名和IP类规则？折中的方案是：

  • 仅对明确需要走代理的域名返回fakeIP，出站走代理。
  • 需要直连的域名就用国内的DNS服务器查询，出站走直连。
  • 其他连接用国外DNS服务器走代理查询，拿到可信IP后出站走代理。

启动 #

启动systemctl start sing-box
停止systemctl stop sing-box
重启systemctl restart sing-box 日志journalctl -f -u sing-box

如果最后测试没问题将sing-box设为开机自启动systemctl enable sing-box

使用 #

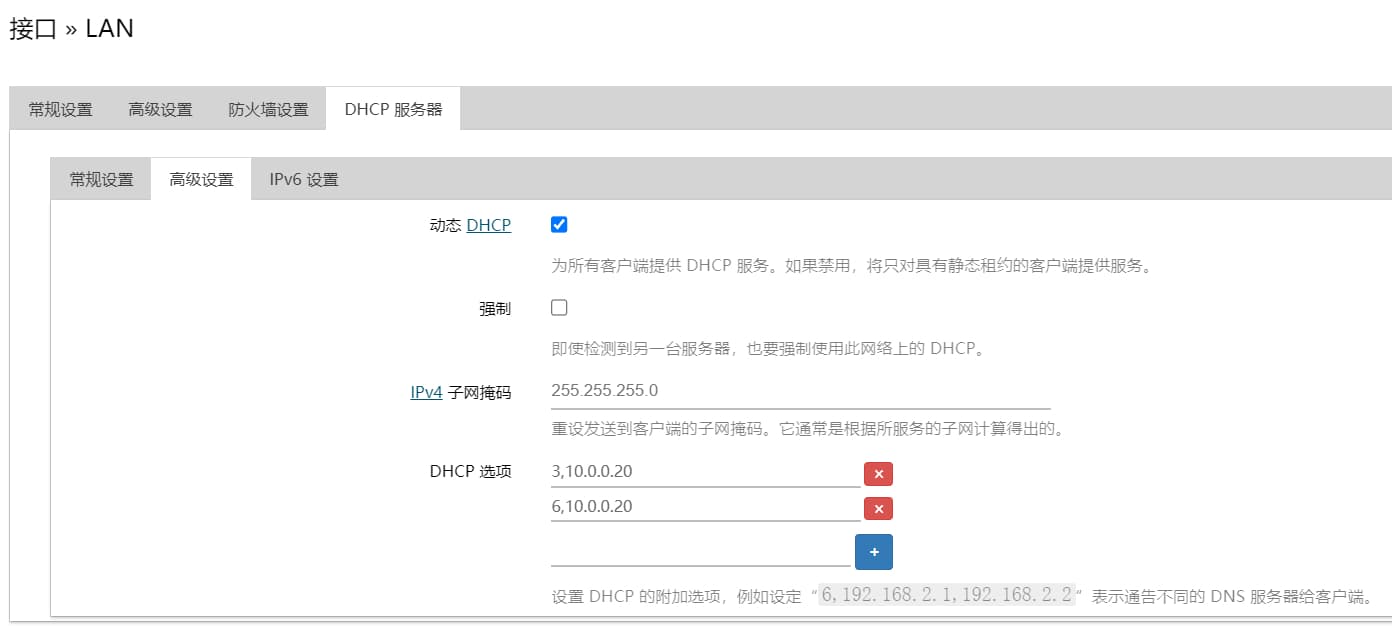

将局域网其他设备的网关和DNS服务器手动指定到该机器上，测试看看是否正常工作。没问题后可以在主路由器的DHCP附加选项(dhcp_option)中将网关和DNS服务器自动通告给客户端，这样就不用在其他设备手动指定了，这里以OpenWrt为例:

关于nftables #

由于 nftables 更现代化、更高效、更灵活，具有很多优势，是时候抛弃使用 iptables 命令了。和 iptables 的逻辑不同，nftables 默认没有表和链，都需要你自己创建。创建链时需要注意:

type filter hook prerouting priority -150; policy accept;
  • type：filter，route，nat，每种类型功能不一样，能在什么hook工作也不一样，比如redirect需要在nat类型进行。在iptables体现为4个预先定义的表（raw，mangle，nat，filter），并且默认定义了优先级不能改。
  • hook：prerouting，input，forward，output，postrouting，取决于网络数据包在路由中的位置。在iptables体现为5个预先定义的链（PREROUTING，INPUT，FORWARD，OUTPUT，POSTROUTING）。
  • priority：在当前hook中，各个自定义链的优先级和执行顺序。

Docker #

Docker 目前仍然操纵 iptables 规则来使 docker 网络工作，建议不要在该网关服务器上使用 docker 相关服务，以免出现各种问题。

参考 #

2025-09-27 编辑：修复 nftables.sh dns劫持失效的问题

sing-box
tproxy
nftables
透明代理
